Ohm's law in Georg Ohm's lab book.Ohm's law was probably the most important of the early quantitative descriptions of the physics of electricity. We consider it almost obvious today. When Ohm first published his work, this was not the case; critics reacted to his treatment of the subject with hostility. They called his work a 'web of naked fancies' and the German Minister of Education proclaimed that 'a professor who preached such heresies was unworthy to teach science.' The prevailing scientific philosophy in Germany at the time asserted that experiments need not be performed to develop an understanding of nature because nature is so well ordered, and that scientific truths may be deduced through reasoning alone. Also, Ohm's brother Martin, a mathematician, was battling the German educational system. These factors hindered the acceptance of Ohm's work, and his work did not become widely accepted until the 1840s.
However, Ohm received recognition for his contributions to science well before he died.In the 1850s, Ohm's law was known as such and was widely considered proved, and alternatives, such as ', were discredited, in terms of real applications to telegraph system design, as discussed by in 1855.The was discovered in 1897 by, and it was quickly realized that it is the particle that carries electric currents in electric circuits. In 1900 the first model of electrical conduction, the, was proposed by, which finally gave a scientific explanation for Ohm's law. In this model, a solid conductor consists of a stationary lattice of , with moving randomly in it. A voltage across a conductor causes an, which accelerates the electrons in the direction of the electric field, causing a drift of electrons which is the electric current. However the electrons collide with and scatter off of the atoms, which randomizes their motion, thus converting the kinetic energy added to the electron by the field to. Using statistical distributions, it can be shown that the average drift velocity of the electrons, and thus the current, is proportional to the electric field, and thus the voltage, over a wide range of voltages.The development of in the 1920s modified this picture somewhat, but in modern theories the average drift velocity of electrons can still be shown to be proportional to the electric field, thus deriving Ohm's law. In 1927 applied the quantum of electron energies to the Drude model, resulting in the.
A year later, showed that electrons move in waves through a solid crystal lattice, so scattering off the lattice atoms as postulated in the Drude model is not a major process; the electrons scatter off impurity atoms and defects in the material. The final successor, the modern quantum of solids, showed that the electrons in a solid cannot take on any energy as assumed in the Drude model but are restricted to energy bands, with gaps between them of energies that electrons are forbidden to have. The size of the band gap is a characteristic of a particular substance which has a great deal to do with its electrical resistivity, explaining why some substances are, some, and some.While the old term for electrical conductance, the (the inverse of the resistance unit ohm), is still used, a new name, the, was adopted in 1971, honoring. Resident evil 3 ost. The siemens is preferred in formal papers.In the 1920s, it was discovered that the current through a practical resistor actually has statistical fluctuations, which depend on temperature, even when voltage and resistance are exactly constant; this fluctuation, now known as, is due to the discrete nature of charge. This thermal effect implies that measurements of current and voltage that are taken over sufficiently short periods of time will yield ratios of V/I that fluctuate from the value of R implied by the time average or of the measured current; Ohm's law remains correct for the average current, in the case of ordinary resistive materials.Ohm's work long preceded and any understanding of frequency-dependent effects in AC circuits. Modern developments in electromagnetic theory and circuit theory do not contradict Ohm's law when they are evaluated within the appropriate limits.ScopeOhm's law is an, a generalization from many experiments that have shown that current is approximately proportional to electric field for most materials.
Practical physics 10th 14.1 verify Ohm's law using nichrome wire as a conductor - Duration: 18:50. THE FAST SCHOOL & FAST SCIENCE ACADEMY 11,793 views.
It is less fundamental than and is not always obeyed. Any given material will under a strong-enough electric field, and some materials of interest in electrical engineering are 'non-ohmic' under weak fields.Ohm's law has been observed on a wide range of length scales. In the early 20th century, it was thought that Ohm's law would fail at the, but experiments have not borne out this expectation. As of 2012, researchers have demonstrated that Ohm's law works for wires as small as four atoms wide and one atom high. Microscopic origins. Main article:The dependence of the current density on the applied electric field is essentially in nature; (see Classical and quantum conductivity.) A qualitative description leading to Ohm's law can be based upon using the developed by in 1900.The Drude model treats (or other charge carriers) like pinballs bouncing among the that make up the structure of the material. Electrons will be accelerated in the opposite direction to the electric field by the average electric field at their location.
With each collision, though, the electron is deflected in a random direction with a velocity that is much larger than the velocity gained by the electric field. The net result is that electrons take a zigzag path due to the collisions, but generally drift in a direction opposing the electric field.The then determines the electric and its relationship to E and is independent of the collisions. Drude calculated the average drift velocity from p = − e Eτ where p is the average, − e is the charge of the electron and τ is the average time between the collisions. Since both the momentum and the current density are proportional to the drift velocity, the current density becomes proportional to the applied electric field; this leads to Ohm's law.Hydraulic analogyA is sometimes used to describe Ohm's law. Water pressure, measured by (or ), is the analog of voltage because establishing a water pressure difference between two points along a (horizontal) pipe causes water to flow.
Water flow rate, as in per second, is the analog of current, as in per second. Finally, flow restrictors—such as apertures placed in pipes between points where the water pressure is measured—are the analog of resistors. We say that the rate of water flow through an aperture restrictor is proportional to the difference in water pressure across the restrictor. Similarly, the rate of flow of electrical charge, that is, the electric current, through an electrical resistor is proportional to the difference in voltage measured across the resistor.Flow and pressure variables can be calculated in fluid flow network with the use of the hydraulic ohm analogy. The method can be applied to both steady and transient flow situations. In the linear region, describes the hydraulic resistance of a pipe, but in the region the pressure–flow relations become nonlinear.The hydraulic analogy to Ohm's law has been used, for example, to approximate blood flow through the circulatory system. Circuit analysis.

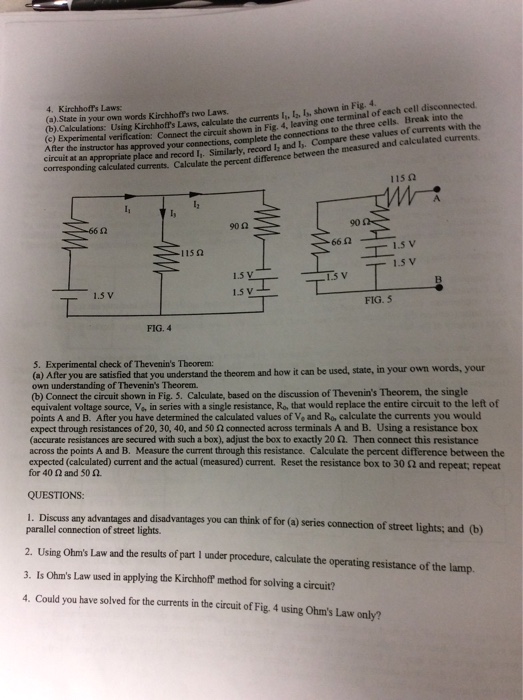

See also: andOhm's law is one of the basic equations used in the. It applies to both metal conductors and circuit components specifically made for this behaviour.
Both are ubiquitous in electrical engineering. Materials and components that obey Ohm's law are described as 'ohmic' which means they produce the same value for resistance (R = V/I) regardless of the value of V or I which is applied and whether the applied voltage or current is DC of either positive or negative polarity or AC.In a true ohmic device, the same value of resistance will be calculated from R = V/I regardless of the value of the applied voltage V. That is, the ratio of V/I is constant, and when current is plotted as a function of voltage the curve is linear (a straight line). If voltage is forced to some value V, then that voltage V divided by measured current I will equal R. Or if the current is forced to some value I, then the measured voltage V divided by that current I is also R. Since the plot of I versus V is a straight line, then it is also true that for any set of two different voltages V 1 and V 2 applied across a given device of resistance R, producing currents I 1 = V 1/R and I 2 = V 2/R, that the ratio (V 1−V 2)/(I 1−I 2) is also a constant equal to R.
